F-102A; Meng 1/72
Topic Started: May 14 2013, 09:43 PM (1,217 Views)
Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
This is up next from my workbench.
It is a super looking kit with refined details and full weapons bay. the cockpit leaves something to be desired though I will build it with the canopy closed so it is no biggie really.

Posted Image

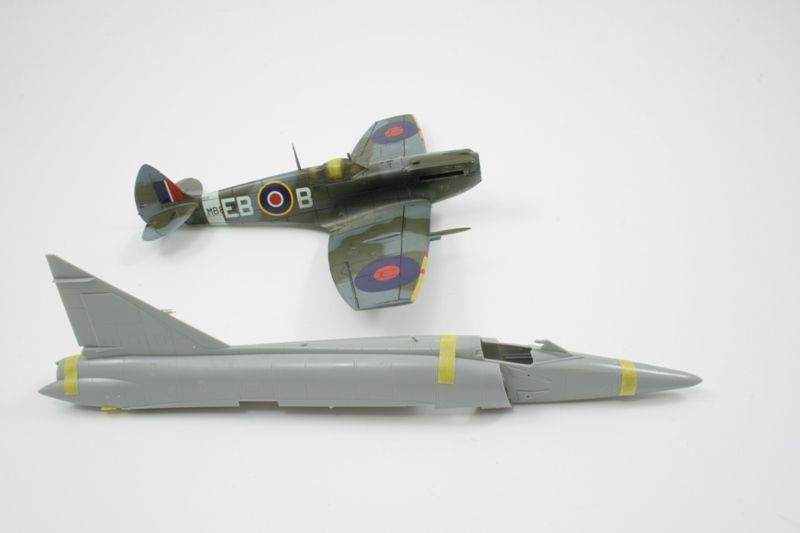

The actual aircraft is a large beastie for a 1/72 fighter, check out a dry fit of the fuselage along side the 1/48 Spitfire!

Posted Image

I have Caracal decals and will be doing option 3, North Dakota ANG "Happy Hooligans"

Posted Image
Edited by Mike W, May 14 2013, 09:46 PM.
Goto Top

Harriet
Member Avatar
Advanced Member
[ *  *  * ]
Coward!

:rofl: :wicked:
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
Harriet
May 14 2013, 09:50 PM
Coward!

:rofl: :wicked:
:shrug:
Err...am I missing something? :hmm: :)
Goto Top

peebeep
Member Avatar
Lots Of Trouble Usually Serious
[ *  *  * ]
I think H thinks you've gone all frit by not doing a detailed cockpit. :fool:

I just happen to have one of these kits lurking under my desk. The tub is a bit basic, but I'd say it would likely pass muster in the narrow cockpit, even with the hood up.

peebeep
Goto Top

Mentalguru
Member Avatar
Owned by Jen
[ *  *  * ]
*Cough* AHEM

Finish the bloody Spit!!!!!!!!! :)
Goto Top

Harriet
Member Avatar
Advanced Member
[ *  *  * ]
Mike W
May 14 2013, 10:08 PM
Harriet
May 14 2013, 09:50 PM
Coward!

:rofl: :wicked:
:shrug:
Err...am I missing something? :hmm: :)
:poke: I was referring to the H-34? :poke:
:ahar:
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
Harriet
May 15 2013, 07:43 AM
Mike W
May 14 2013, 10:08 PM
Harriet
May 14 2013, 09:50 PM
Coward!

:rofl: :wicked:
:shrug:
Err...am I missing something? :hmm: :)
:poke: I was referring to the H-34? :poke:
:ahar:
Well, the H-34 is underway but it can't be shared (yet) as its a review build for SAM ;-)
Goto Top

Harriet
Member Avatar
Advanced Member
[ *  *  * ]
Mike W
May 15 2013, 10:04 AM
Harriet
May 15 2013, 07:43 AM
Mike W
May 14 2013, 10:08 PM
Harriet
May 14 2013, 09:50 PM
Coward!

:rofl: :wicked:
:shrug:
Err...am I missing something? :hmm: :)
:poke: I was referring to the H-34? :poke:
:ahar:
Well, the H-34 is underway but it can't be shared (yet) as its a review build for SAM ;-)
OK - you're forgiven - just this once!
:wub:
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
OK back on topic :wicked:

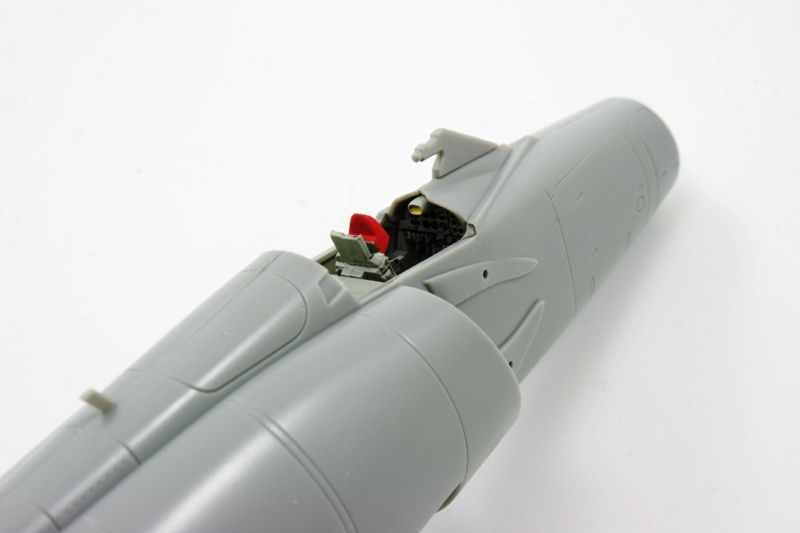

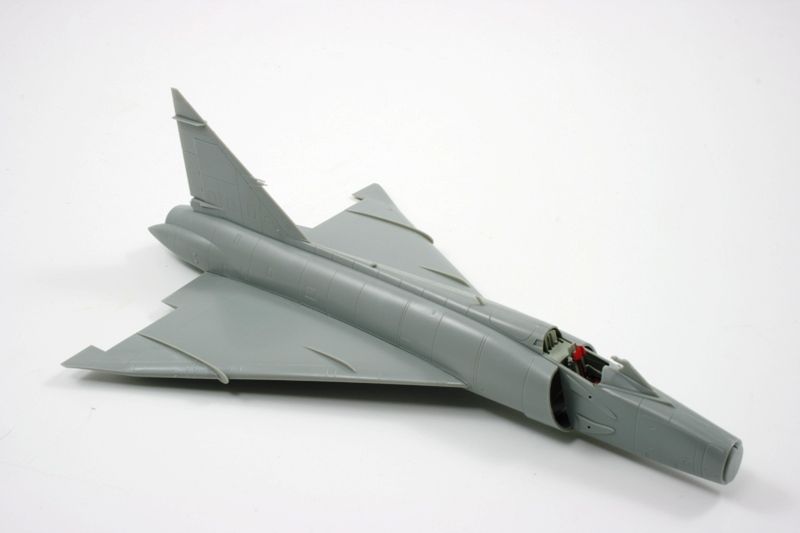

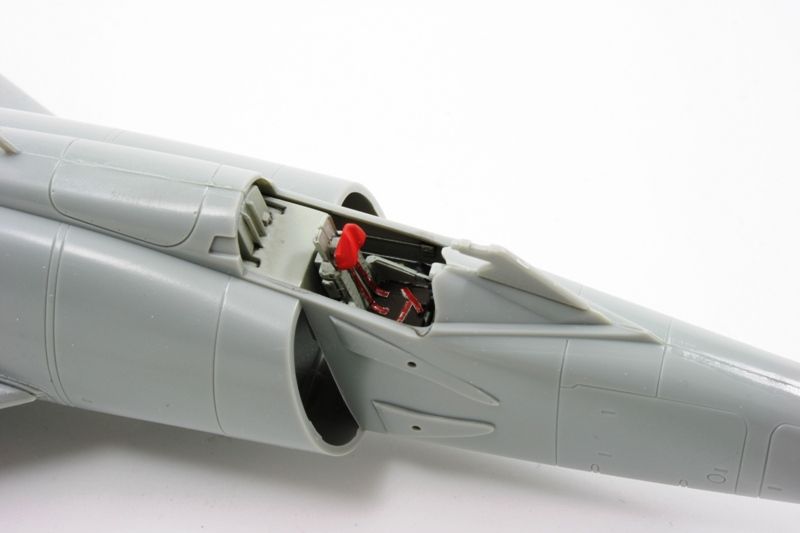

The cockpit was simply painted Aircraft grey and detailed with the supplied decal for the IP and the rest painted with Vallejo Model Color and seat belts added from wine bottle foil.

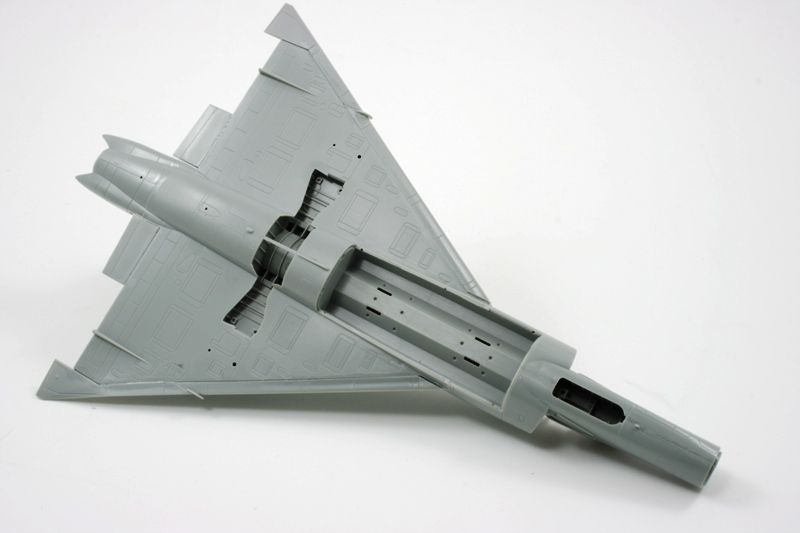

The fit all round is absolutely spot on, it is still drying here but they will require a small amount of clean up, but only to eliminate the inevitable seam lines.

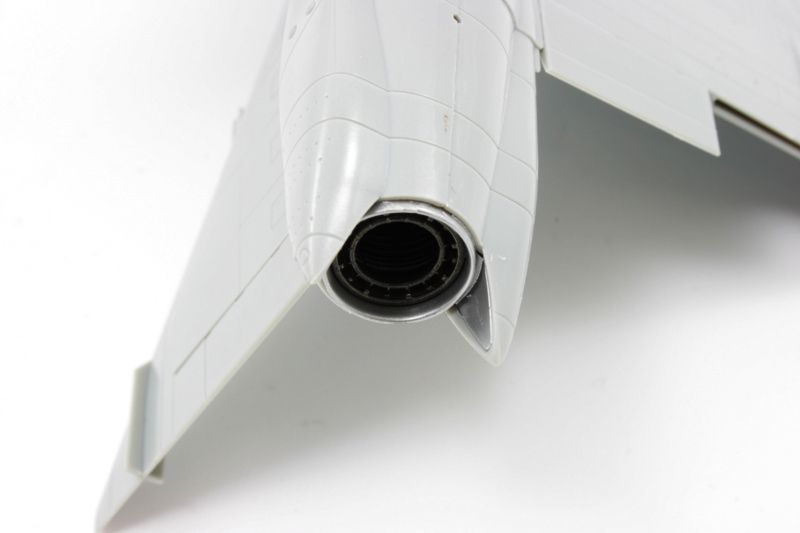

The exhaust areas were Alcladded with Jet Exhaust, Steel and Aluminium.
There is no mention made in the instructions for nose weight but I may just add some in the nose cone to err on the side of caution.
I am still undecided whether to have the weapons bay open or just take the easy route and close it up :hmm: . Meng offer a one piece cover or separate doors if it is displayed opened, also there are six missiles included with extended or retracted launch trapezes

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Goto Top

Floyd
Member Avatar
I like to mottle things.
[ *  *  * ]
oh it just puts the hase one to utter shame, Love it. Was planing on super detailing an old hase one and bring it kicking and screaming into modern world, but whats the point when this beast is out there. Think I really need to pick one up to complete my century series to modern standards.
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
Cheers Floyd! :thumbsup:

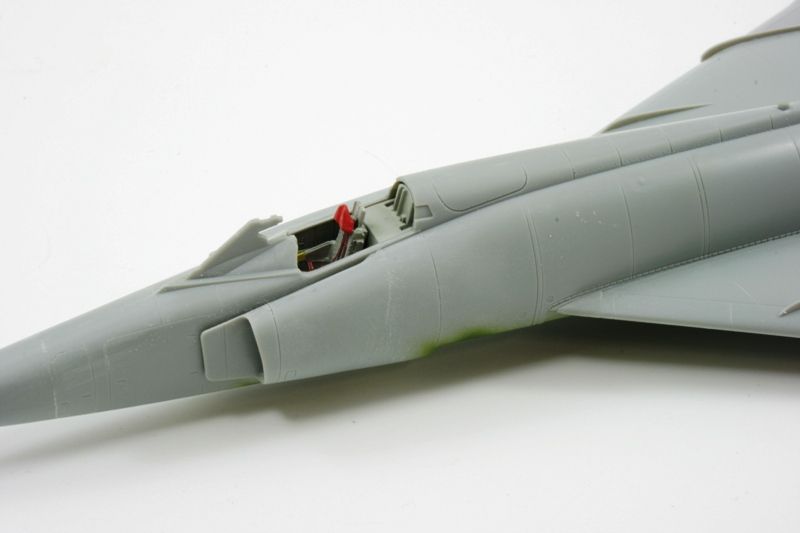

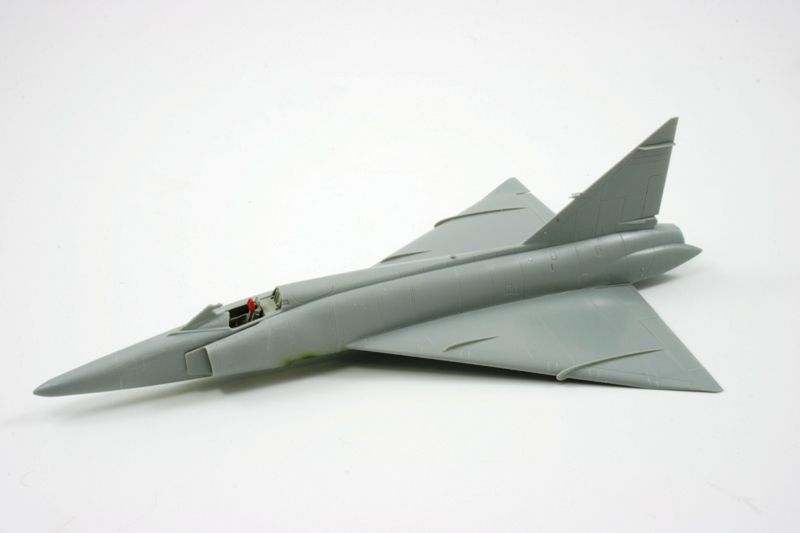

Almost ready for main painting now. The intakes needed some attention to get a smooth transition as Meng decided to put the join where there is no panel line so the seam needed completely eliminating, so it was out with the CA & accelerator and sanding sponges. Only a 5 min job tbh so no real issue ;)
I then mixed up a home brew of Interior Green for the weapons/undercarriage bays etc.

Posted Image

Posted Image

Posted Image
Goto Top

Floyd
Member Avatar
I like to mottle things.
[ *  *  * ]
Looking cracking bud. Cannot wait to see more.
Goto Top

Mentalguru
Member Avatar
Owned by Jen
[ *  *  * ]
I really thought "meh" when I saw this announced- but has anyone seen the finished article in Airmodeler this issue..?

OMG
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
Cheers chaps.

The nose pitot was replaced by a (blunted) sewing pin for durability.

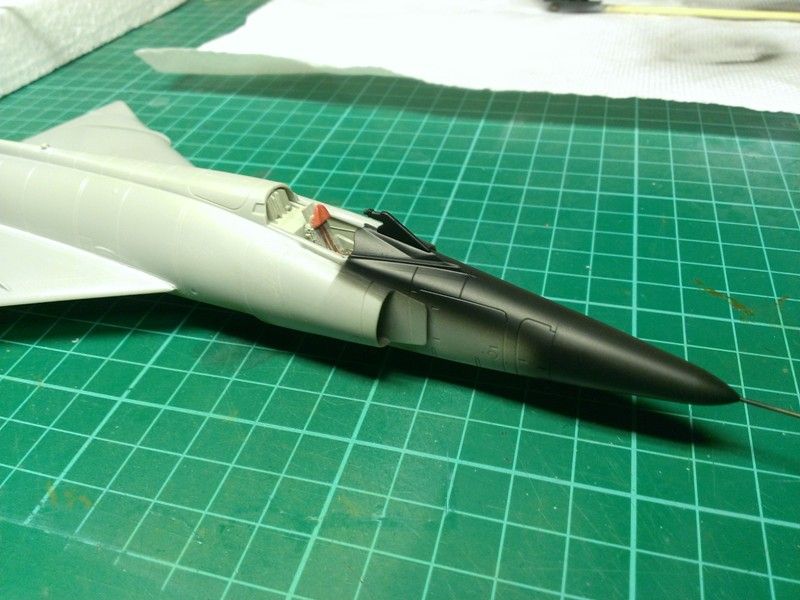

I then used Alclad Black primer for the nose cone and anti-glare panel as I was priming other stuff so had it in the AB. If you've never used Alclad primers, they really are very good :thumbsup:

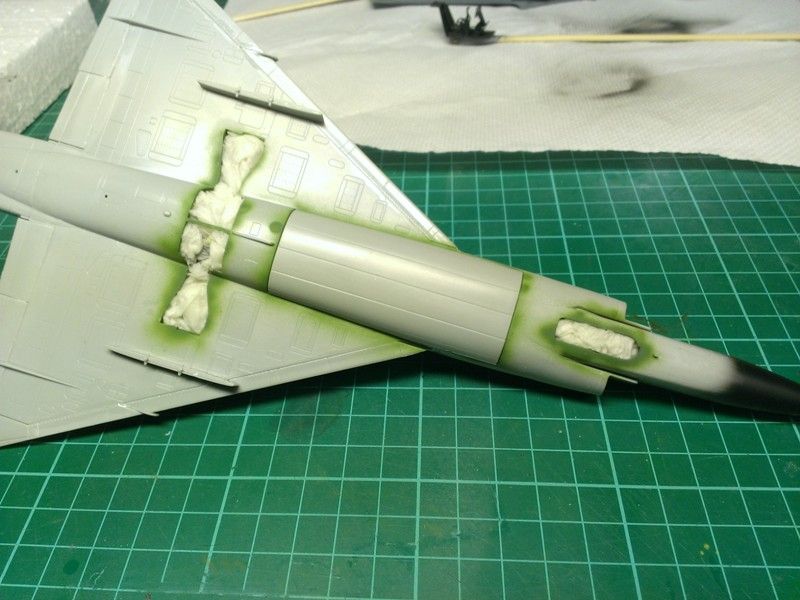

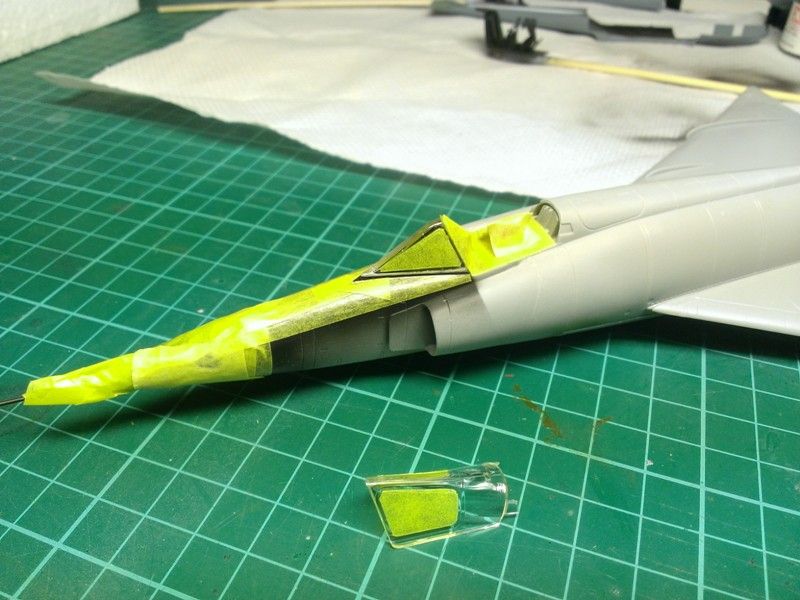

The canopies were then masked up along with the nose cone and anti-glare panel. The windscreen fitted and the rest of the cockpit was masked off ready for painting, whilst in the mood for masking wet tissue paper was stuffed into the wheel wells and thenthe weapons bay cover was blutacked in place to act as a mask for that.

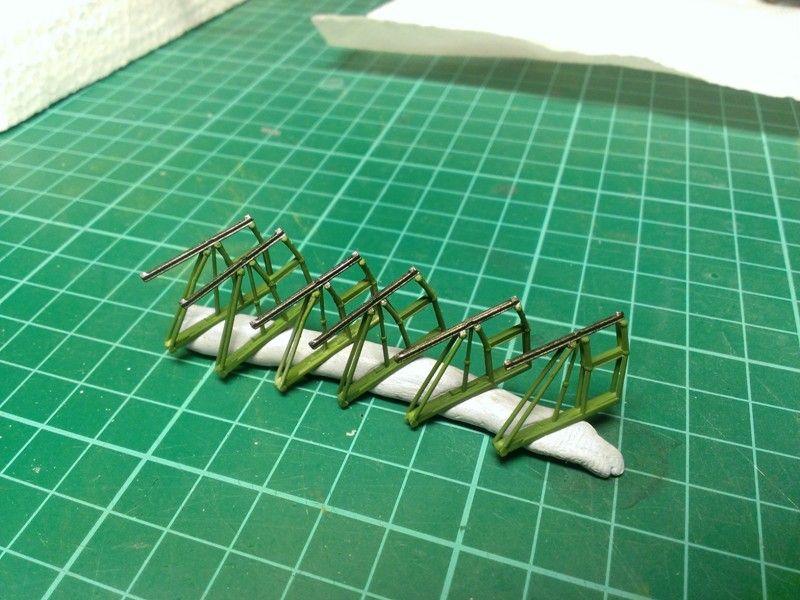

The rocket launch rails were hand painted Steel.
Posted Image

Posted Image

Posted Image

Posted Image
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]

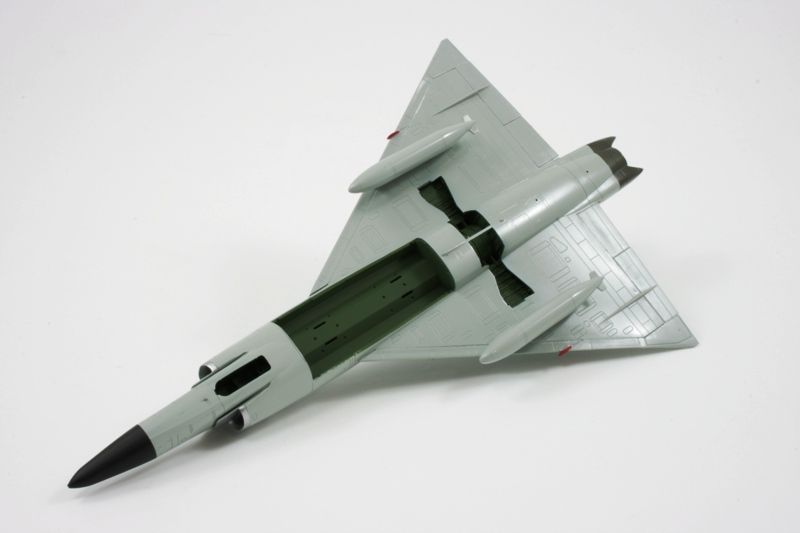

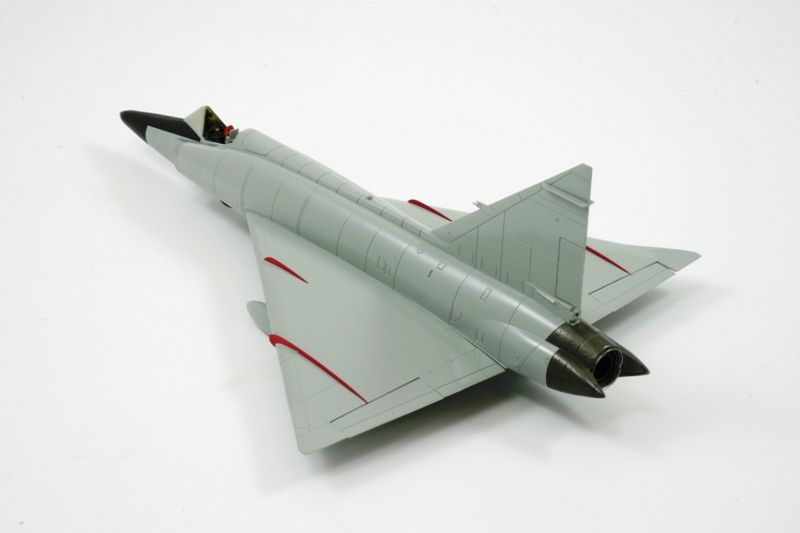

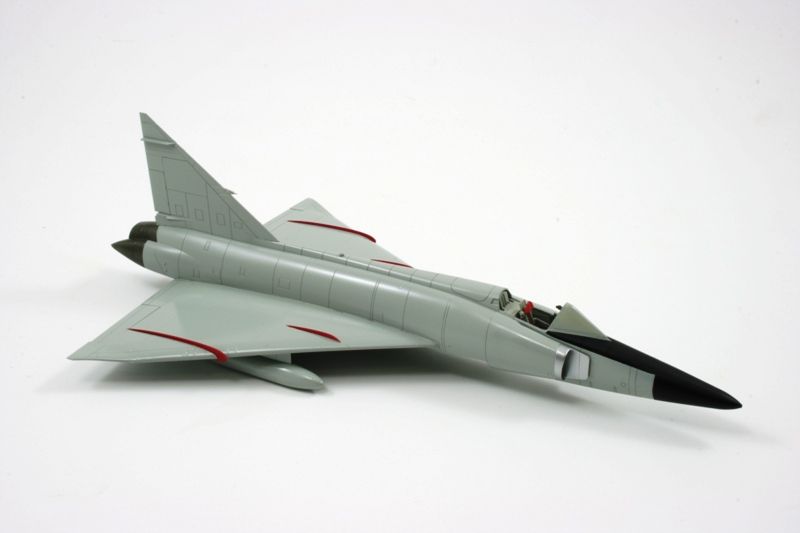

So the sewing pin was removed as I kept stabbing myself whilst maneuvering for masking, of which there was a lot after the Grey went on . I used Gunze H57 Aircraft Grey for that which looks spot on for me.
The red wing fences were masked off before being sprayed Gunze H12 Red, a right pain in the proverbial but worth the effort expended I think.

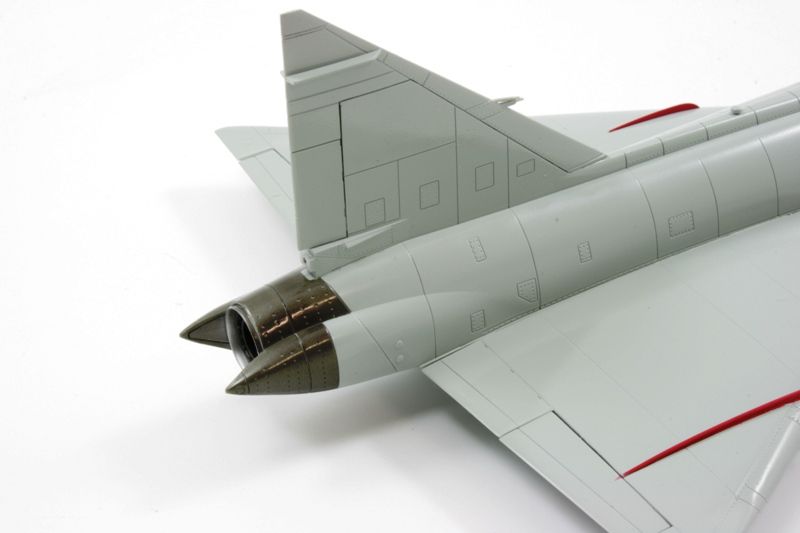

I then examined the rest of the paint job and found some scratches on the intakes and the undersides from my sanding, so these were wet sanded back and resprayed. Following references I added the intake fronts with Alclad Aluminium and whilst I was in the mood for smelly spraying I Alcladded the exhaust areas with Jet Exhaust.
Next I will let this little lot cure before sealing/glossing ready for decals.
I really like this air defence grey scheme, although "just another grey jet" it is somewhat more appealling than modern "grey jets" IMO.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Goto Top

Seamus
Member Avatar
Advanced Member
[ *  *  * ]
Looking rather special my friend, century series jets are just too cool B)
Goto Top

Mentalguru
Member Avatar
Owned by Jen
[ *  *  * ]
Looks great Mike!

This kit is really getting favourable comments.
Goto Top

pacheco
Advanced Member
[ *  *  * ]
Beautiful.
Goto Top

Floyd
Member Avatar
I like to mottle things.
[ *  *  * ]
Such a good looking aircraft and such a clean masking and painting job, love it. The more I watch this thread the stronger an urge I have to pick one up and make it my next project.
Goto Top

Mike W
Member Avatar
Hook down, wheels down... call the ball
[ *  *  * ]
Thankyou friends.

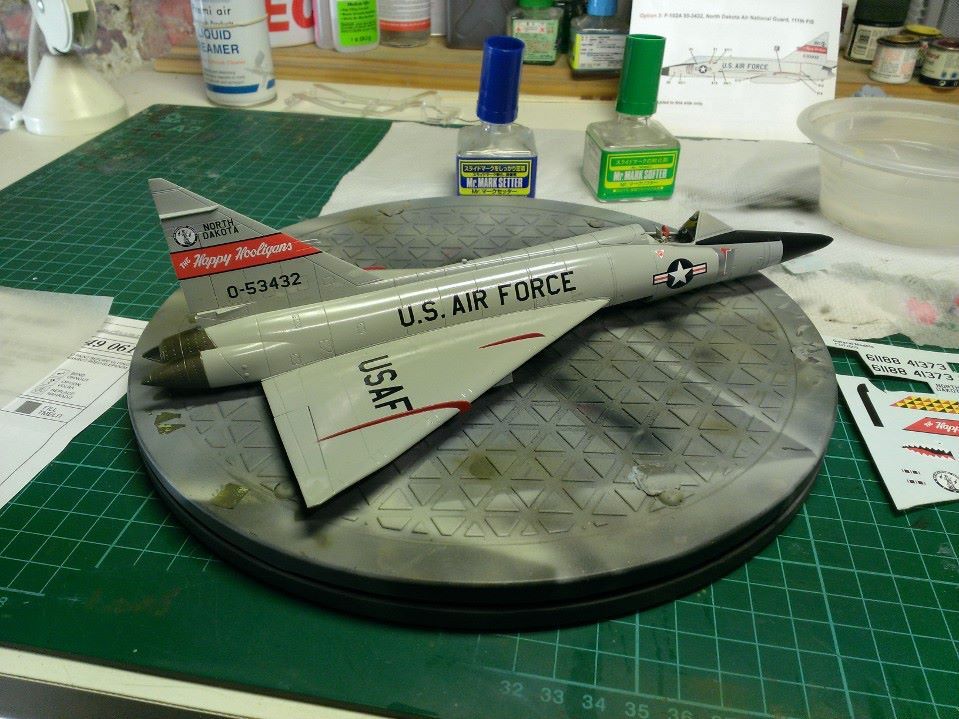

Decallin' done this evening, here is a literal WIP pic!
Caracal decals for North Dakota ANG

Posted Image
